2SC3601 - PNP / NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

  • High fT : fT typ=400MHz. High breakdown voltage : VCEO≥200V. Small reverce transfer capacitance and excellent high frequency characteristics : Cre=2.0pF(NPN), 2.5pF(PNP). Complementary PNP and NPN types. Adoption of FBET process. Specifications ( ) : 2SA1407 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipatio.

📥 Download Datasheet

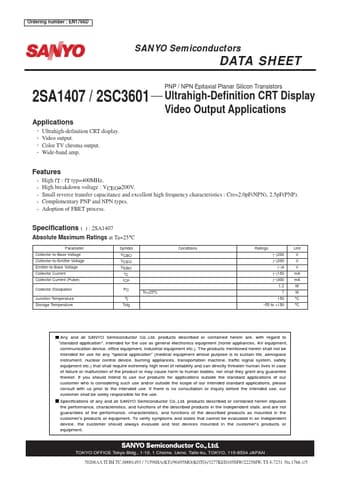

Datasheet preview – 2SC3601

Datasheet Details

Part number 2SC3601
Manufacturer Sanyo Semicon Device
File Size 48.35 KB
Description PNP / NPN Epitaxial Planar Silicon Transistors
Datasheet download datasheet 2SC3601 Datasheet
