2SC3605 - Silicon NPN Epitaxial Planar Type Transistor

Datasheet Summary

Features

  • l Low Noise Figure, High Gain l NF = 1.1dB, |S21e|2 = 10dB (f = 1GHz) Unit in mm.

📥 Download Datasheet

Datasheet preview – 2SC3605

Datasheet Details

Part number 2SC3605
Manufacturer Toshiba Semiconductor
File Size 237.97 KB
Description Silicon NPN Epitaxial Planar Type Transistor
Datasheet download datasheet 2SC3605 Datasheet
Additional preview pages of the 2SC3605 datasheet.

📁 Similar Datasheet

  • 2SC3600 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC3601 - PNP / NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SC3603 - NPN EPITAXIAL SILICON TRANSISTOR (NEC)
  • 2SC3604 - NPN EPITAXIAL SILICON TRANSISTOR (NEC)
  • 2SC3604 - NPN EPITAXIAL SILICON TRANSISTOR (New Jersey Semi-Conductor)
  • 2SC3606 - NPN Transistors (Kexin)
  • 2SC3608 - Transistor (ETC)
  • 2SC3611 - Silicon NPN Transistor (Panasonic Semiconductor)
  • 2SC3615 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3616 - NPN SILICON TRANSISTOR (NEC)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

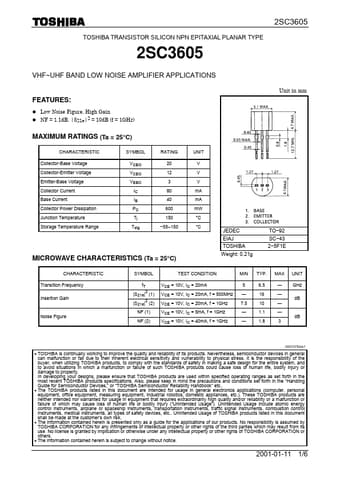

TOSHIBA TRANSISTOR SILICON NPN EPITAXIAL PLANAR TYPE 2SC3605 2SC3605 VHF~UHF BAND LOW NOISE AMPLIFIER APPLICATIONS FEATURES: l Low Noise Figure, High Gain l NF = 1.1dB, |S21e|2 = 10dB (f = 1GHz) Unit in mm MAXIMUM RATINGS (Ta = 25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg RATING 20 12 3 80 40 600 150 −55~150 UNIT V V V mA mA mW °C °C MICROWAVE CHARACTERISTICS (Ta = 25°C) JEDEC EIAJ TOSHIBA Weight: 0.
