2SC3621 - NPN Transistor

📥 Download Datasheet

Datasheet preview – 2SC3621

Datasheet Details

Part number 2SC3621
Manufacturer Toshiba Semiconductor
File Size 150.25 KB
Description NPN Transistor
Datasheet download datasheet 2SC3621 Datasheet
Additional preview pages of the 2SC3621 datasheet.

📁 Similar Datasheet

  • 2SC3621 - NPN Transistor (INCHANGE)
  • 2SC3622 - NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3622A - NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3623 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3623A - NPN SILICON TRANSISTOR (NEC)
  • 2SC3624 - AUDIO FREQUENCY AMPLIFIER / SWITCHING NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3624 - Transistor (Kexin)
  • 2SC3624A - AUDIO FREQUENCY AMPLIFIER / SWITCHING NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3626 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3626 - Silicon NPN Power Transistors (Inchange Semiconductor)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text

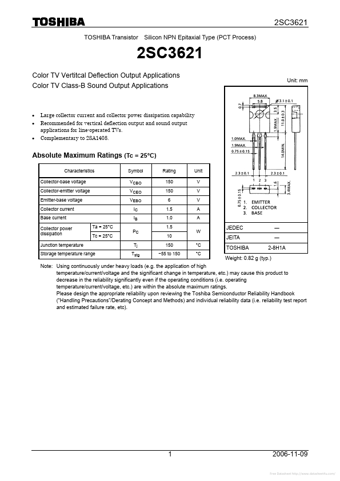

2SC3621 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC3621 Color TV Vertitcal Deflection Output Applications Color TV Class-B Sound Output Applications Unit: mm • • • Large collector current and collector power dissipation capability Recommended for vertical deflection output and sound output applications for line-operated TVs. Complementary to 2SA1408. Absolute Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Ta = 25°C Tc = 25°C Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 150 150 6 1.5 1.0 1.5 10 150 −55 to 150 Unit V V V A A W °C °C JEDEC JEITA TOSHIBA ― ― 2-8H1A Weight: 0.82 g (typ.
