2SC3606 Datasheet - Toshiba Semiconductor

2SC3606 Silicon NPN Transistor

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC3606 2SC3606 VHF~UHF Band Low Noise Amplifier Applications Unit: mm Low noise figure, high gain. NF = 1.1dB, |S21e|2 = 11dB (f = 1 GHz) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 20 12 3 80 40 150 125 .

2SC3606 Datasheet (235.97 KB)

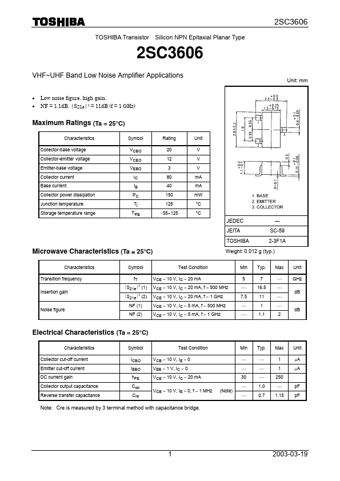

Preview of 2SC3606 PDF

Datasheet Details

Part number:

2SC3606

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

235.97 KB

Description:

Silicon npn transistor.
