2SC3620 - Silicon NPN Transistor

📥 Download Datasheet

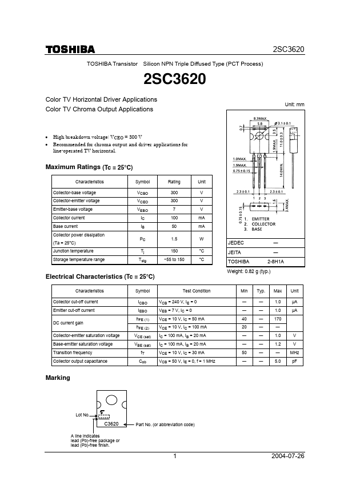

Datasheet preview – 2SC3620

Datasheet Details

Part number 2SC3620
Manufacturer Toshiba Semiconductor
File Size 129.53 KB
Description Silicon NPN Transistor
Datasheet download datasheet 2SC3620 Datasheet
Additional preview pages of the 2SC3620 datasheet.

📁 Similar Datasheet

  • 2SC3621 - NPN Transistor (INCHANGE)
  • 2SC3622 - NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3622A - NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3623 - NPN SILICON TRANSISTOR (NEC)
  • 2SC3623A - NPN SILICON TRANSISTOR (NEC)
  • 2SC3624 - AUDIO FREQUENCY AMPLIFIER / SWITCHING NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3624 - Transistor (Kexin)
  • 2SC3624A - AUDIO FREQUENCY AMPLIFIER / SWITCHING NPN SILICON EPITAXIAL TRANSISTOR (NEC)
  • 2SC3626 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3626 - Silicon NPN Power Transistors (Inchange Semiconductor)
Other Datasheets by Toshiba Semiconductor

Full PDF Text Transcription

Click to expand full text
2SC3620 TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process) 2SC3620 Color TV Horizontal Driver Applications Color TV Chroma Output Applications Unit: mm • High breakdown voltage: VCEO = 300 V • Recommended for chroma output and driver applications for line-operated TV horizontal. Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation (Ta = 25°C) Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 300 300 7 100 50 1.
