2SC5198B

Silicon NPN Transistor

2SC5198B Features

* High breakdown voltage, V CEO =140V (min) Complementary to 2SA1941B TO-3P package which can be installed to the heat sink with one screw 2 3 +0.2 1.05 -0.1 5.45±0.1 C E +0.2 0.65 -0.1 5.45±0.1 B 1.8 15.6±0.4 9.6 5 . 0 ±0 . 2 4.8±0.2 2.0±0.1 Φ 3.2 ± 0,1 1.4 C APPLICATIONS Suitable for use i

2SC5198B Datasheet (241.37 KB)

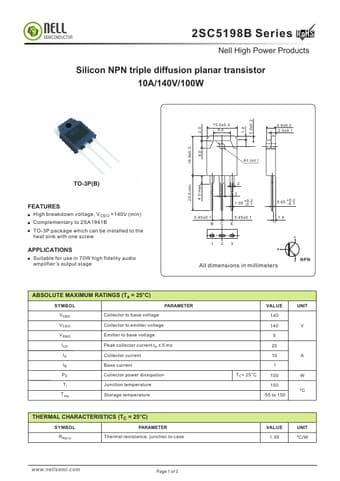

Preview of 2SC5198B PDF

Datasheet Details

Part number:

2SC5198B

Manufacturer:

NELL SEMICONDUCTOR

File Size:

241.37 KB

Description:

Silicon npn transistor.
SEMICONDUCTOR 2SC5198B Series Silicon NPN triple diffusion planar transistor 10A/140V/100W RoHS RoHS Nell High Power Products 2.0 19.9±0.3 4.0 .
