2SC5194 - NPN TRANSISTOR

2SC5194 Description

DATA SHEET SILICON TRANSISTOR 2SC5194 MICROWAVE LOW NOISE AMPLIFIER NPN SILICON EPITAXIAL TRANSISTOR .

2SC5194 Features

* Low Voltage Operation, Low Phase Distortion
* Low Noise NF = 1.5 dB TYP. @VCE = 3 V, IC = 7 mA, f = 2 GHz
* Large Absolute Maximum Collector Current
* 4-Pin Compact Mini Mold Package PACKAGE DRAWINGS (Unit: mm) 2.1±0.2 0.3
* 0.05 +0.1 NF = 1.7 dB TYP. @VC

📥 Download Datasheet

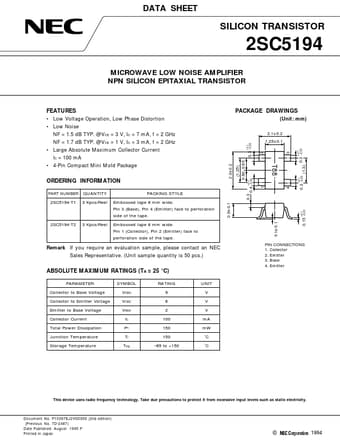

Preview of 2SC5194 PDF
