2SC5192, NPN TRANSISTOR

DATA SHEET SILICON TRANSISTOR 2SC5192 MICROWAVE LOW NOISE AMPLIFIER NPN SILICON EPITAXIAL TRANSISTOR 4 PINS MINI MOLD .

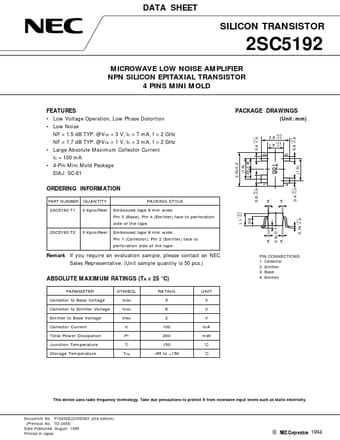

datasheet Preview Page 1 from Datasheet4u.com

2SC5192_NEC.pdf

2SC5192 Datasheet Preview — Preview of 2SC5192 PDF

Datasheet Details

Part number:

2SC5192

Manufacturer:

NEC

File Size:

68.30 KB

Description:

NPN TRANSISTOR

Features

* Low Voltage Operation, Low Phase Distortion
* Low Noise NF = 1.5 dB TYP. @VCE = 3 V, IC = 7 mA, f = 2 GHz NF = 1.7 dB TYP. @VCE = 1 V, IC = 3 mA, f = 2 GHz
* Large Absolute Maximum Collector Current IC = 100 mA PACKAGE DRAWINGS (Unit: mm) +0.2 0.4
* 0.05 1.5 +0.2
