2SC5198, NPN Transistor

TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SC5198 Power Amplifier Applications 2SC5198 Unit: mm * High breakdown voltage: VCEO = 1.

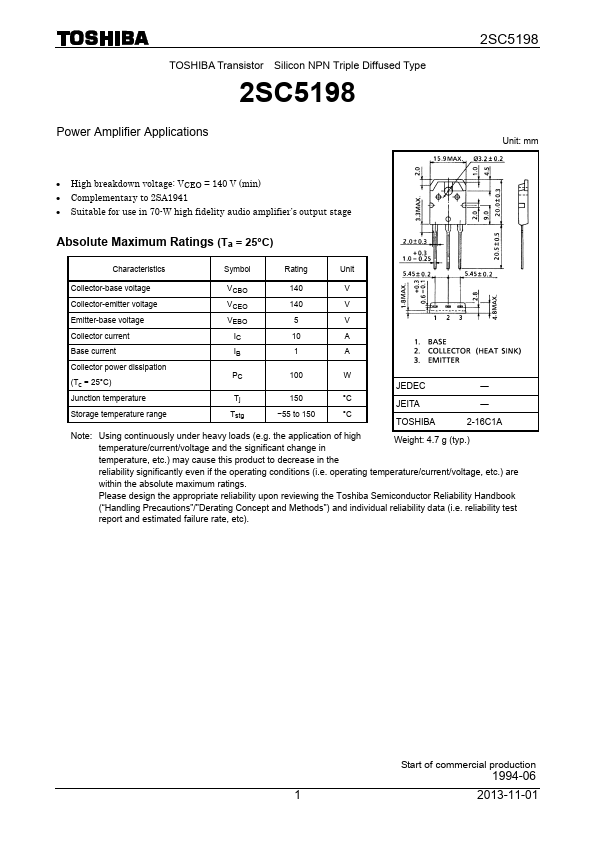

datasheet Preview Page 1 from Datasheet4u.com

2SC5198_ToshibaSemiconductor.pdf

2SC5198 Datasheet Preview — Preview of 2SC5198 PDF

Datasheet Details

Part number:

2SC5198

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

149.68 KB

Description:

NPN Transistor

Applications

* 2SC5198 Unit: mm
* High breakdown voltage: VCEO = 140 V (min)
* Complementary to 2SA1941
* Suitable for use in 70-W high fidelity audio amplifier’s output stage Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 140
