2SC5191 - NPN TRANSISTOR

2SC5191 Description

DATA SHEET SILICON TRANSISTOR 2SC5191 MICROWAVE LOW NOISE AMPLIFIER NPN SILICON EPITAXIAL TRANSISTOR .

2SC5191 Features

* Low Voltage Operation, Low Phase Distortion
* Low Noise NF = 1.5 dB TYP. @ VCE = 3 V, IC = 7 mA, f = 2 GHz NF = 1.7 dB TYP. @ VCE = 1 V, IC = 3 mA, f = 2 GHz
* Large Absolute Maximum Collector Current 2.9±0.2 PACKAGE DRAWINGS (Unit: mm) 2.8±0.2 0.4 +0.1
* 0.05 1.5

📥 Download Datasheet

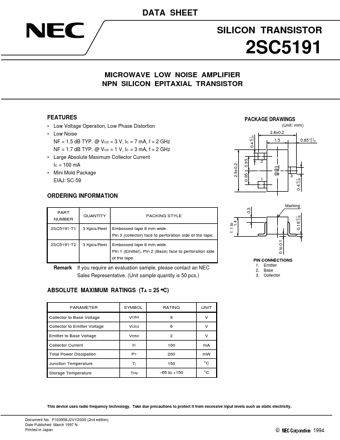

Preview of 2SC5191 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SC5191
Manufacturer
NEC
File Size
57.89 KB
Datasheet
2SC5191_NEC.pdf
Description
NPN TRANSISTOR
