2SC4793AF Datasheet, Transistor, NELL SEMICONDUCTOR

2SC4793AF Features

  • Transistor High transition frequency: f T = 100MHz (typ.) Complementary to 2SA1837AF TO-220F package which can be installed to the heat sink with one screw BC E TO-220F (2SC4793AF) APPLICATIONS P

PDF File Details

Part number:

2SC4793AF

Manufacturer:

NELL SEMICONDUCTOR

File Size:

205.89kb

Download:

📄 Datasheet

Description:

High frequency npn power transistor.

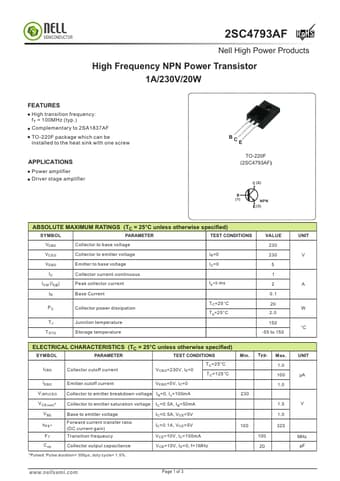

Datasheet Preview: 2SC4793AF 📥 Download PDF (205.89kb)
Page 2 of 2SC4793AF Page 3 of 2SC4793AF

2SC4793AF Application

  • Applications Power amplifier Driver stage amplifier C (2) B (1) NPN E (3) ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise specified) SYMBOL
