2SC4703 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC4703

Manufacturer:

INCHANGE

File Size:

223.22kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • Low Distortion at Low Supply Voltage. IM2- 55 dB TYP., IM3- 76 dB TYP. @VCE = 5 V, IC = 50 mA, VO = 105dBμ/75Ω
  • 100%

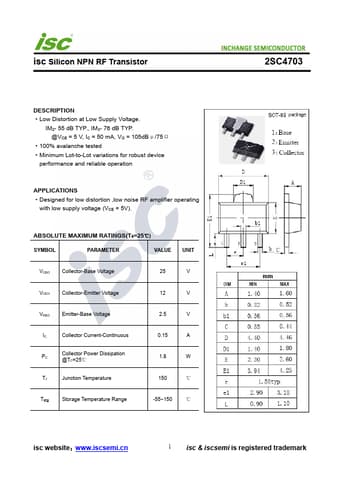

  • Datasheet Preview: 2SC4703 📥 Download PDF (223.22kb)
    Page 2 of 2SC4703 Page 3 of 2SC4703

    2SC4703 Application

    • Applications
    • Designed for low distortion ,low noise RF amplifier operating with low supply voltage (VCE = 5V). ABSOLUTE MAXIMUM RATINGS(Ta
