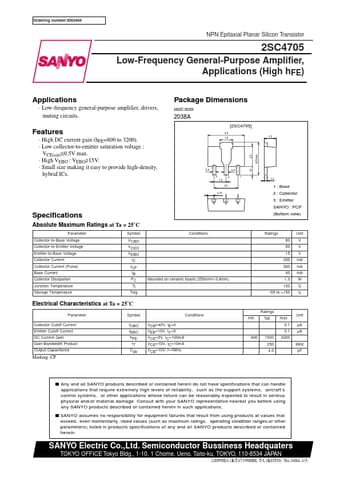

2SC4705 Datasheet, Transistor, Sanyo Semicon Device

2SC4705 Features

• Transistor
• High DC current gain (hFE=800 to 3200).
• Low collector-to-emitter saturation voltage : VCE(sat)≤0.5V max.
• High VEBO : VEBO≥15V.
• Small size making

PDF File Details

Part number:

2SC4705

Manufacturer:

Sanyo Semicon Device

File Size:

100.21kb

Download:

📄 Datasheet

Description:

Npn transistor.

2SC4705 Application

• Applications (High hFE) Applications
• Low-frequency general-purpose amplifier, drivers, muting circuits. Features
• High DC curren
