2SC4706 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SC4706

Manufacturer:

INCHANGE

File Size:

214.94kb

Download:

📄 Datasheet

Description:

Npn transistor.

  • High Collector-Emitter Breakdown Voltage- : V(BR)CEO= 600V(Min)
  • High Switching Speed
  • High Reliability

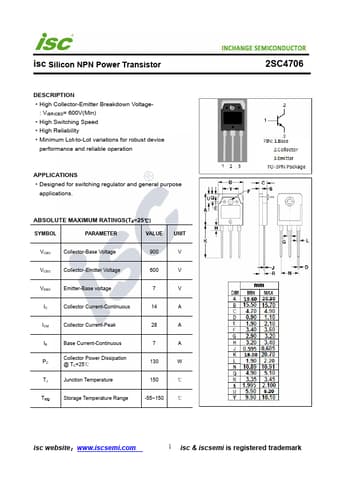

  • Datasheet Preview: 2SC4706 📥 Download PDF (214.94kb)
    Page 2 of 2SC4706

    2SC4706 Application

    • Applications
    • Designed for switching regulator and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE
