2SC4215-O - NPN Silicon Transistors

Product Overview

MCC

Part number	2SC4215-O
Manufacturer	MCC
File Size	279.09 KB
Description	NPN Silicon Transistors
Datasheet	2SC4215-O Datasheet

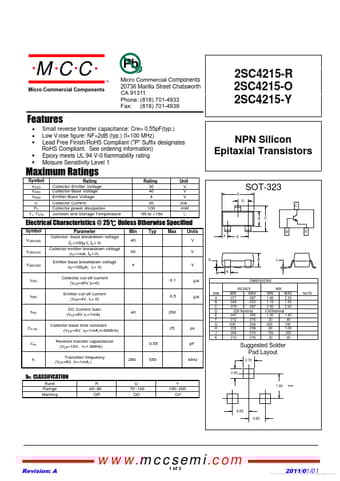

Additional preview pages of the 2SC4215-O datasheet.

Small reverse transfer capacitance: Cre= 0.55pF(typ. ) Low V oise figure: NF=2dB (typ. ) (f=100 MHz) Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Collector power dissipation Junction and Storage Temperature Rating 30 40 4 20 100 -55 to +150 Unit V V V mA.
