* Adoption of MBIT process.
* High breakdown voltage, large current capacity.
* Fast switching speed. Package Dimensions unit:mm 2064 [2SA1768/2SC4612] ( ) : 2SA1768 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage
2SC4612
Sanyo Semicon Device
152.22 KB
Pnp/npn epitaxial planar silicon transistors.
Ordering number:EN3582

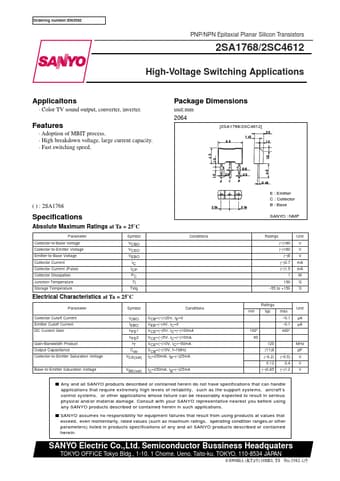

PNP/NPN Epitaxial Planar Silicon Transistors
2SA1768/2SC4612
High-Voltage Switching Applications
Applicaitons
* Color TV .
