* Adoption of MBIT processes.
* High breakdown voltage and large current capacity.
* Fast switching speed. Package Dimensions unit:mm 2042A [2SA1769/2SC4613] ( ) : 2SA1769 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter V
2SC4613
Sanyo Semicon Device
160.05 KB
Pnp/npn epitaxial planar silicon transistors.
Ordering number:EN3707

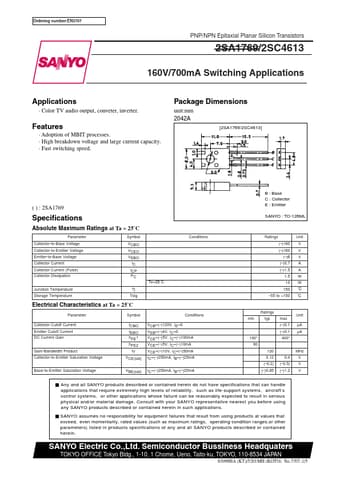

PNP/NPN Epitaxial Planar Silicon Transistors
2SA1769/2SC4613
160V/700mA Switching Applications
Applications
* Color TV au.
