2SJ275 P-Channel MOSFET

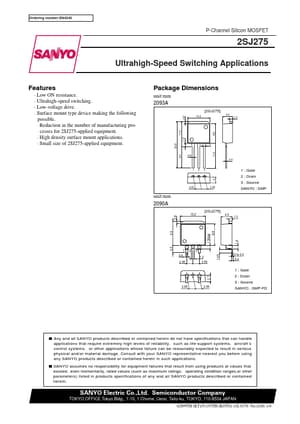

📥 Download Datasheet  Datasheet Preview Page 1

Description

Ordering number:EN4240 P-Channel Silicon MOSFET 2SJ275 Ultrahigh-Speed Switching Applications .

📥 Download Datasheet

Preview of 2SJ275 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
2SJ275
Manufacturer
Sanyo Semicon Device
File Size
94.73 KB
Datasheet
2SJ275_SanyoSemiconDevice.pdf
Description
P-Channel MOSFET

Features

* Low ON resistance.
* Ultrahigh-speed switching.
* Low-voltage drive.
* Surface mount type device making the following possible.
* Reduction in the number of manufacturing pro- cesses for 2SJ275-applied equipment.
