DBD10

1.0A Single-Phase Bridge Rectifier

DBD10 Features

* Package Dimensions unit : mm 1314 Surface mount type (TM emboss taping) [DBD10] 0.25 Plastic molded structure. Peak reverse voltage : VRM=200V, 600V. Average rectified current : IO=1.0A.

* + 10.0 6.5 1.3 3.0 6.8 1.3 C0.8 ∼ ∼ 0.1 2.5 SANYO : DBD10-T

DBD10 Datasheet (20.40 KB)

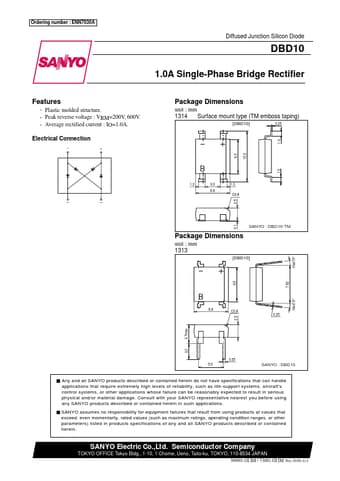

Preview of DBD10 PDF

Datasheet Details

Part number:

DBD10

Manufacturer:

Sanyo Semicon Device

File Size:

20.40 KB

Description:

1.0a single-phase bridge rectifier.
