DL-3144-007S Datasheet - Sanyo Semicon Device

DL-3144-007S, INFRARED LASER DIODE

INFRARED LASER DIODE DL-3144-007S .

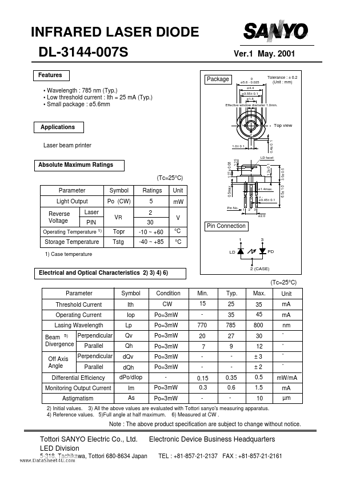

datasheet Preview Page 1 from Datasheet4u.com

DL-3144-007S_SanyoSemiconDevice.pdf

DL-3144-007S Datasheet Preview — Preview of DL-3144-007S PDF

Datasheet Details

Part number:

DL-3144-007S

Manufacturer:

Sanyo Semicon Device

File Size:

38.33 KB

Description:

INFRARED LASER DIODE

Features

* Wavelength : 785 nm (Typ. )
* Low threshold current : Ith = 25 mA (Typ. )

Applications

* Laser beam printer 1 2 1.0± 0.1 3 Top view LD facet Absolute Maximum Ratings (Tc=25°C) Parameter Light Output Reverse Voltage Laser PIN VR Topr Tstg Symbol Po (CW) Ratings 5 2 30 -10 ~ +60 -40 ~ +85 Unit mW Pin No. 1 2 3 ø2.0 ø1.4max. 3ø0.45± 0.1 V °C °C LD Operating Temperature 1) Pin Conne
