FC805 Datasheet 30v/ 500ma Rectifier

Manufacturer: SANYO (now Panasonic)

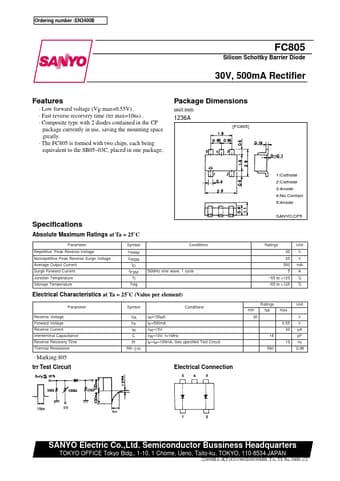

Overview: Ordering number :EN3400B FC805 Silicon Schottky Barrier Diode 30V, 500mA.

Key Features

  • Low forward voltage (VF max=0.55V).
  • Fast reverse recorvery time (trr max=10ns).
  • Composite type with 2 diodes contained in the CP package currently in use, saving the mounting space greatly.
  • The FC805 is formed with two chips, each being equivalent to the SB05.
  • 03C, placed in one package. Package Dimensions unit:mm 1236A [FC805] 1:Cathode 2:Cathode 3:Anode 4:No Contact 5:Anode SANYO:CP5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive P.
