FX601 - Ultrahigh-Speed Switching Applications

Product Overview

Sanyo Semicon Device

Part number	FX601
Manufacturer	Sanyo Semicon Device
File Size	128.48 KB
Description	Ultrahigh-Speed Switching Applications
Datasheet	FX601 Datasheet
Additional preview pages of the FX601 datasheet.

Composite type composed of tow low ON-resistance P-channel MOSFET chips for ultrahigh-speed switching and low-voltage drive.
Facilitates high-density mounting.
Tth FX601 is formed with two chips, each being equivalent to the 2SJ316, placed in one package.

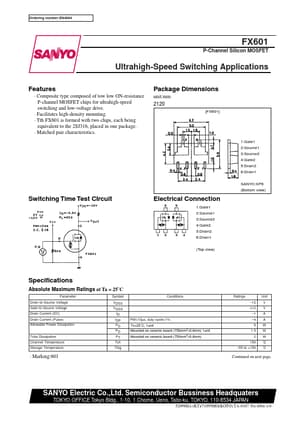

Matched pair characteristics. Package Dimensions unit:mm 2120 [FX601] 1:Gate1 2:Source1 3:Source2 4:Gate2 5:Drain2 6:Drain1 SANYO:XP6 (Bottom view) Switching Time Test CIrcuit Electrical Connection 1:Gate1 2:Source1.
