FX604 - Ultrahigh-Speed Switching Applications

Product Overview

Sanyo Semicon Device

Part number	FX604
Manufacturer	Sanyo Semicon Device
File Size	104.55 KB
Description	Ultrahigh-Speed Switching Applications
Datasheet	FX604 Datasheet

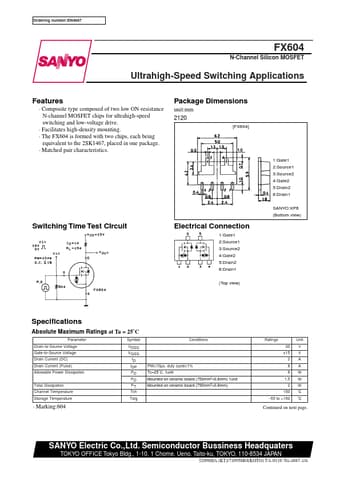

Additional preview pages of the FX604 datasheet.

Composite type composed of two low ON-resistance N-channel MOSFET chips for ultrahigh-speed switching and low-voltage drive.
Facilitates high-density mounting.
The FX604 is formed with two chips, each being equivalent to the 2SK1467, placed in one package.
Matched pair characteristics. Package Dimensions unit:mm 2120 [FX604] 1:Gate1 2:Source1 3:Source2 4:Gate2 5:Drain2 6:Drain1 SANYO:XP6 (Bottom view) Switching Time Test CIrcuit Electrical Connection 1:Gate1 2:Source1.
