* Spindle driver block 1) 3-phase sensor-less motor driver 2) Soft switching drive 3) Analog input V type control 4) Current limiter incorporated 5) Counter electromotive FG output 6) Reverse prevention circuit incorporated
* Threading, focusing, tracking, and loading blocks 1) BTL-A
LA6502
Sanyo Semicon Device
183.52 KB
Monolithic linear ic 5ch driver.

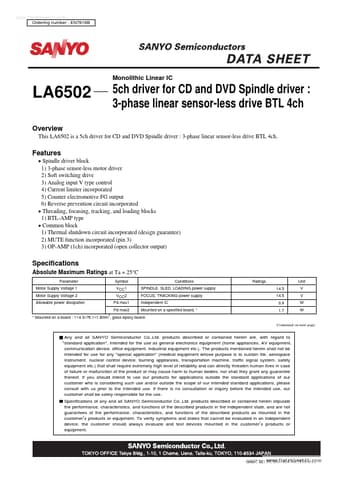

www.DataSheet4U.com Ordering number : EN7816B
Monolithic Linear IC
LA6502
Overview
5ch driver for CD and DVD Spindle driver : 3-phase linear sensor.
