LA6563 - 4CH Bridge (BTL) Driver

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

LA6563 4CH Bridge (BTL) Driver by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LA6563

Datasheet Details

Part number	LA6563
Manufacturer	Sanyo Semicon Device
File Size	326.66 KB
Description	4CH Bridge (BTL) Driver
Datasheet	LA6563 Datasheet

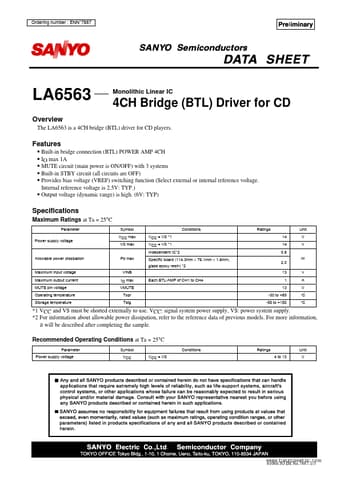

Additional preview pages of the LA6563 datasheet.

Product details

Features

Monolithic Linear IC 4CH Bridge (BTL) Driver for CD The LA6563 is a 4CH bridge (BTL) driver for CD players.
Built-in bridge connection (BTL) POWER AMP 4CH.
IO max 1A.
MUTE circuit (main power is ON/OFF) with 3 systems.
Built-in STBY circuit (all circuits are OFF).
Provides bias voltage (VREF) switching function (Select external or internal reference voltage. Internal reference voltage is 2.5V: TYP. ).
Output voltage (dynamic range) is hig.
