LA6564H Datasheet - Sanyo

LA6564H 4CH Bridge (BTL) Driver

. All MUTES enter the STBY mode when they are L (output OFF), turning OFF all the circuits including the output AMP. 2) Relationship between each CH and V *, MUTE CH1 (12dB) VS1 MUTE1 CH2 (12dB) VS2 CH3 (12dB) MUTE2 VS3 CH4 (18dB) MUTE3 VO-SET 3) VO-SET VO-SET operates for CH4. VO-SET i.
Ordering number : ENN7336 Monolithic Linear IC LA6564H 4CH Bridge (BTL) Driver for CD-R Overview The LA6564H is a 4-channel BTL driver developed for CD-ROM/R/RW and DVD-ROM actuator. Package Dimensions unit : mm 3234A-HSOP28H-C (375mil) [ LA6564H ] Functions Three power supply systems (with a separate preamplifier stage). Four bridge-connection (BTL) power amps built-in. IO max : 1A. Mute circuit (output ON/OFF) built-in. With three systems (2-1-1). .

LA6564H_SanyoSemiconDevice.pdf

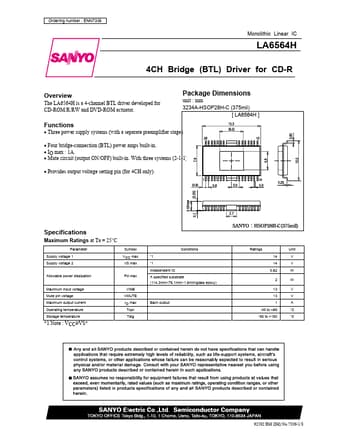

Preview of LA6564H PDF
LA6564H Datasheet Preview Page 2 LA6564H Datasheet Preview Page 3

Datasheet Details

Part number:

LA6564H

Manufacturer:

Sanyo

File Size:

486.52 KB

Description:

4ch bridge (btl) driver.
