LA72714VA - Monolithic Linear IC

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

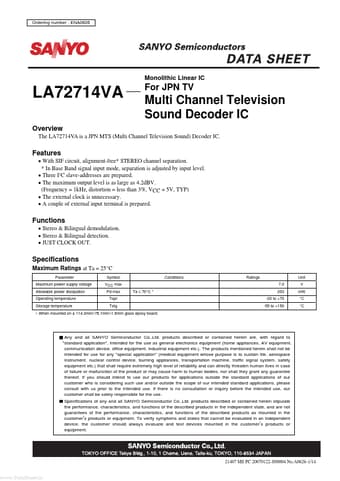

LA72714VA Monolithic Linear IC by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LA72714VA

Datasheet Details

Part number	LA72714VA
Manufacturer	Sanyo Semicon Device
File Size	175.88 KB
Description	Monolithic Linear IC
Datasheet	LA72714VA Datasheet
Additional preview pages of the LA72714VA datasheet.

Product details

Features

With SIF circuit, alignment-free.
STEREO channel separation.
In Base Band signal input mode, separation is adjusted by input level.
Three I2C slave-addresses are prepared.
The maximum output level is as large as 4.2dBV. (Frequency = 1kHz, distortion = less than 3%, VCC = 5V, TYP).
The external clock is unnecessary.
A couple of external input terminal is prepared. Functions.
Stereo & Bilingual demodulation.
Stereo & Bi.
