LA72715VA - JPN MTS

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

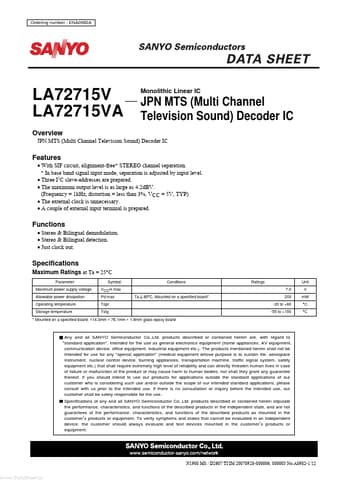

LA72715VA JPN MTS by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LA72715VA

Datasheet Details

Part number	LA72715VA
Manufacturer	Sanyo Semicon Device
File Size	224.96 KB
Description	JPN MTS
Datasheet	LA72715VA Datasheet
Note	This datasheet PDF includes multiple part numbers: LA72715VA, LA72715V. Please refer to the document for exact specifications by model.
Additional preview pages of the LA72715VA datasheet.

Product details

Features

Monolithic Linear IC JPN MTS (Multi Channel Television Sound) Decoder IC JPN MTS (Multi Channel Television Sound) Decoder IC.
With SIF circuit, alignment-free.
STEREO channel separation.
In base band signal input mode, separation is adjusted by input level.
Three I2C slave-addresses are prepared.
The maximum output level is as large as 4.2dBV. (Frequency = 1kHz, distortion = less than 3%, VCC = 5V, TYP).
The external clock is unnecessary.
