LA75521VA Datasheet - Sanyo Semicon Device

LA75521VA - IF Signal Processing (VIFSIF) IC

www.DataSheet.co.kr Ordering number : EN A1004 Monolithic Linear IC LA75521VA Overview IF Signal Processing (VIF+SIF) IC that Supports the PAL Video Standard for TV Sets and VCRs The LA75521VA is a fully adjustment-free VIF + SIF signal processing IC for TV sets and VCRs that supports the PAL video standard.

It supports 38.0MHz, 38.9MHz, and 39.5MHz as the IF frequencies, as well as PAL sound multi-system (M/N, B/G, I and D/K), and contains an on-chip sound carrier trap.

The IC employs

LA75521VA Features

* Internal VCO adjustment free circuit eliminating the need for an external VCO coil. Internal sound carrier trap enables easy configuration of PAL sound multi-system at low cost. Considerably reduces the number of required peripheral parts. Use of dig

LA75521VA_SanyoSemiconDevice.pdf

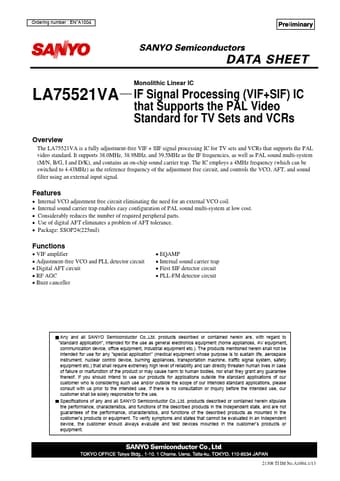

Preview of LA75521VA PDF
LA75521VA Datasheet Preview Page 2 LA75521VA Datasheet Preview Page 3

Datasheet Details

Part number:

LA75521VA

Manufacturer:

Sanyo Semicon Device

File Size:

260.35 KB

Description:

If signal processing (vifsif) ic.
