LA75525VA - VIF/SIF Signal-Processing IC

Sanyo Semicon Device

📥 Download Datasheet

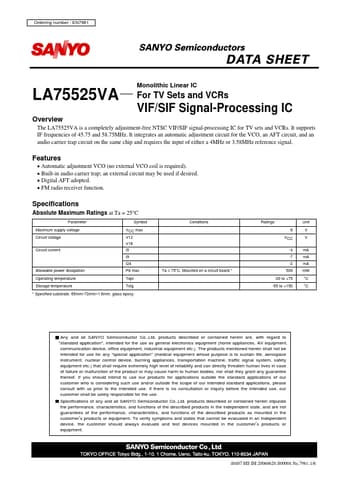

LA75525VA Datasheet Preview — Preview of LA75525VA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: LA75525VA
Manufacturer: Sanyo Semicon Device
File Size: 134.26 KB
Datasheet: LA75525VA_SanyoSemiconDevice.pdf
Description: VIF/SIF Signal-Processing IC

LA75525VA Product details

Features

Automatic adjustment VCO (no external VCO coil is required).
Built-in audio carrier trap; an external circuit may be used if desired.
Digital AFT adopted.
FM radio receiver function. Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Maximum supply voltage Circuit voltage Circuit current Symbol VCC max V12 V16 I5 I9 I24 Allowable power dissipation Operating temperature Storage temperature Pd max Topr Tstg Ta ≤ 75°C, Mounted on a circuit board.
