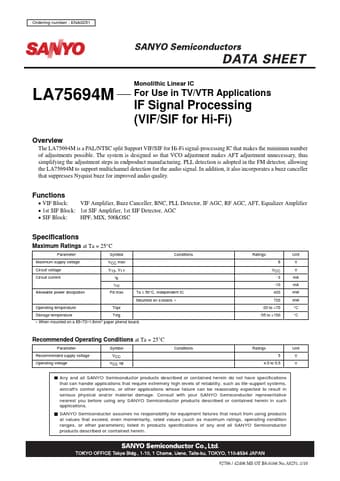

www.DataSheet.co.kr Ordering number : ENA0251 Monolithic Linear IC LA75694M Overview For Use in TV/VTR Applications IF Signal Processing (VIF/SIF for Hi-Fi) The LA75694M is a PAL/NTSC split Support VIF/SIF for Hi-Fi signal-processing IC that makes the minimum number of adjustments possible. The system is designed so that VCO adjustment makes AFT adjustment unnecessary, thus simplifying the adjustment steps in endproduct manufacturing. PLL detection is adopted in the FM detector, allowing t.

LA75694M Features

* late as follows : fpu = f1

* 45.75MHz fpl = f2

* 45.75MHz V25. AFT tolerance frequency 1 [∆Fa1] (1) Internal AGC (2) SG1 : 43.7
