LA75695VA, IF Signal Processing

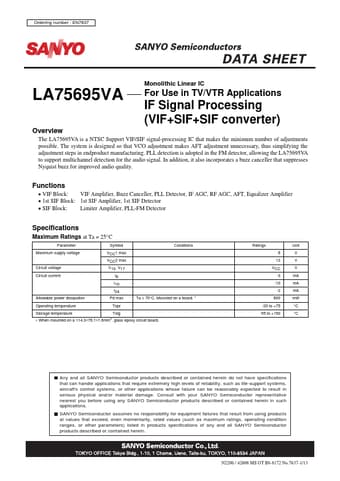

www.DataSheet.co.kr Ordering number : EN7637 Monolithic Linear IC LA75695VA Overview For Use in TV/VTR Applications IF Signal Processing (VIF+SIF+SIF converter) The LA75695VA is a NTSC Support VIF/SIF signal-processing IC that makes the minimum number of adjustments possible.

The system is designed so that VCO adjustment makes AFT adjustment unnecessary, thus simplifying the adjustment steps in endproduct manufacturing.

PLL detection is adopted in the FM detector, allowing the LA75695VA to

LA75695VA Features

* with an impedance analyzer. V24.V25. APC pull-in range [fpu, fpl] (1) Internal AGC (2) fp = 39MHz to 51MHz continuous wav
