LC723764 ETR Microcontrollers by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LC723764

Datasheet Details

Part number	LC723764
Manufacturer	Sanyo Semicon Device
File Size	230.30 KB
Description	ETR Microcontrollers
Datasheet	LC723764 Datasheet

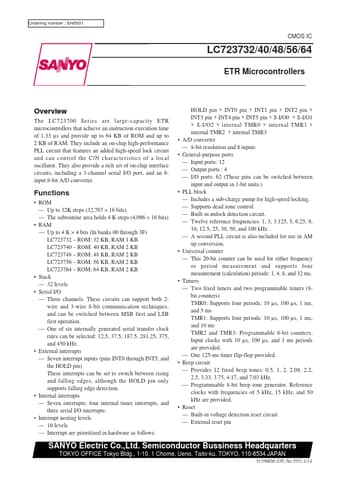

Additional preview pages of the LC723764 datasheet.

Product details

Description

Pin No.

Features

an added high-speed lock circuit and can control the C/N characteristics of a local oscillator. They also provide a rich set of on-chip interface circuits, including a 3-channel serial I/O port, and an 8input 8-bit A/D converter.
Functions.
ROM.
Up to 32K steps (32,767 × 16 bits).
The subroutine area holds 4 K steps (4,096 × 16 bits).
RAM.
Up to 4 K × 4 bits (In banks 00 through 3F) LC723732.
ROM: 32 KB, RAM 1 KB LC72374.
