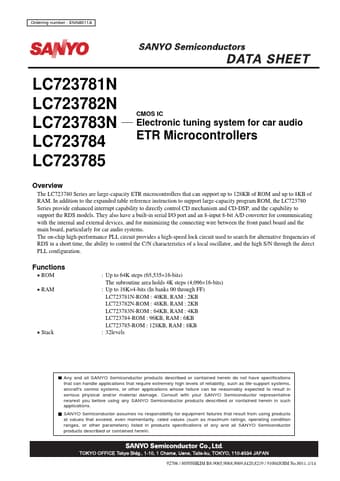

Ordering number : ENN8011A
LC723781N LC723782N LC723783N LC723784 LC723785
CMOS IC
Electronic tuning system for car audio
ETR Microcontrollers
Overview
The LC723780 Series are large-capacity ETR microcontrollers that can support up to 128KB of ROM and up to 8KB of RAM. In addition to the expanded table reference instruction to support large-capacity program ROM, the LC723780 Series provide enhanced interrupt capability to directly control CD mechanism and CD-DSP, and the capability to support the RDS models. They also have a built-in serial I/O port and an 8-input 8-bit A/D converter for communicating with the internal and external devices, and for minimizing the connecting wire between the front panel board and the main board, particularly for car audio systems.
