LC74411N PIP Controller

LC74411N Description

Ordering number : EN *5519A CMOS LSI LC74411N, LC74411NE PIP Controller Preliminary Overview The LC74411N and LC74411NE are digital processing co.

LC74411N Features

* Horizontal resolution: 450 pixels
* Single-chip implementation of the three circuits required in a PIP digital processing block: A/D converter, field memory, and D/A converter circuits
* High image quality provided by vertical filtering
* I2C bus adopted

LC74411N Applications

* and multi-format (NTSC and PAL) applications.
* External control function
* 8-bit D/A converter (PWM type): 6 pins
* General-purpose ports: 8 pins
* Sub-screen specifications
* Display on/off, frame/no frame, frame color switching, wipe function
* Dis

📥 Download Datasheet

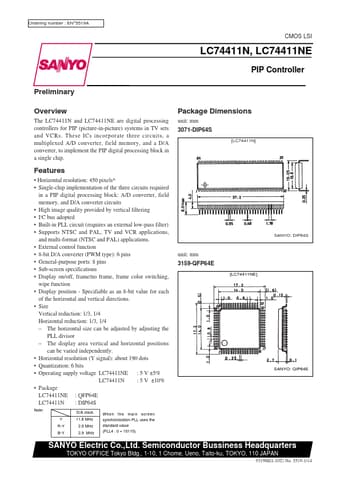

Preview of LC74411N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC74411N
Manufacturer
Sanyo Semicon Device
File Size
174.10 KB
Datasheet
LC74411N_SanyoSemiconDevice.pdf
Description
PIP Controller
