LC749000PT-8B15H - LCD Processor LSI

Datasheet Summary

Features

  • Video Input/Output.
  • Analog Input: 4ch CVBS (NTSC, PAL, and SECAM) with 1ch 10 bit A/D converter.
  • Digital Input: 24 bit RGB and YCbCr, 16bit YCbCr (4:2:2), and 8 bit YC (BT.656).
  • Digital Output: 8 bit Video Decoder Output (BT.656).
  • Video Decoder.
  • Adaptive 3line Comb Filter, Automatic Gain and Chrominance Control.
  • De-interlacer and Scaler.
  • Horizontal and Vertical Programmable Scaler Separately, and Supports Panels up to WVGA.

📥 Download Datasheet

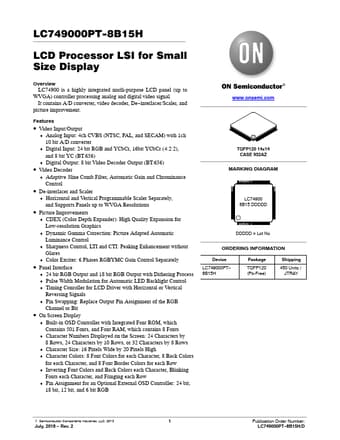

Datasheet preview – LC749000PT-8B15H
