LC749402PT

The LC749402PT is LCD Picture Quality Improvement IC designed by Sanyo Semicon Device.

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

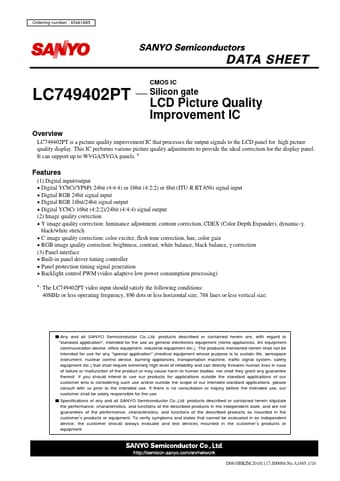

LC749402PT LCD Picture Quality Improvement IC by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LC749402PT

Datasheet Details

Part number	LC749402PT
Manufacturer	Sanyo Semicon Device
File Size	149.38 KB
Description	LCD Picture Quality Improvement IC
Datasheet	LC749402PT_SanyoSemiconDevice.pdf
Additional preview pages of the LC749402PT datasheet.

Product details

Features

es (1) Digital input/output.
Digital YCbCr/YPbPr 24bit (4:4:4) or 16bit (4:2:2) or 8bit (ITU-R BT.656) signal input.
Digital RGB 24bit signal input.
Digital RGB 18bit/24bit signal output.
Digital YCbCr 16bit (4:2:2)/24bit (4:4:4) signal output (2) Image quality correction.
Y image quality correction: luminance adjustment, contour correction, CDEX (Color Depth Expander), dynamic-γ, black/white stretch.
C image quality correction: color exciter.
