LC749402BG LCD Picture Quality Improvement IC

LC749402BG Description

www.DataSheet.co.kr Ordering number : ENA1618 CMOS IC LC749402BG Overview Silicon gate LCD Picture Quality Improvement IC LC749402BG is a pictur.

LC749402BG Features

* (1) Digital input/output
* Digital YCbCr/YPbPr 24bit (4:4:4) or 16bit (4:2:2) or 8bit(ITU-R BT.656) signal input
* Digital RGB 24bit signal input
* Digital RGB 18bit/24bit signal output
* Digital YCbCr16bit (4:2:2)/24bit (4:4:4) signal output (2) Image quality correct

LC749402BG Applications

* outside the standard applications of our customer who is considering such use and/or outside the scope of our intended standard applications, please consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our customer shall be solely responsible for

📥 Download Datasheet

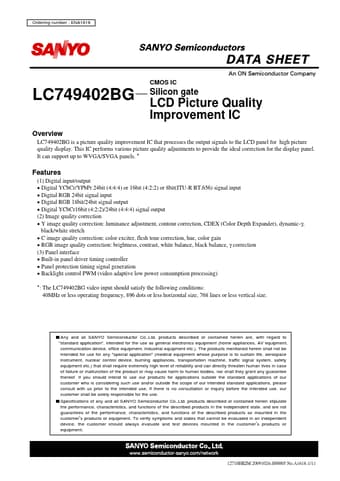

Preview of LC749402BG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LC749402BG
Manufacturer
Sanyo Semicon Device
File Size
158.08 KB
Datasheet
LC749402BG_SanyoSemiconDevice.pdf
Description
LCD Picture Quality Improvement IC
