LC749403BG

The LC749403BG is LCD Picture Quality Improvement IC designed by Sanyo Semicon Device.

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

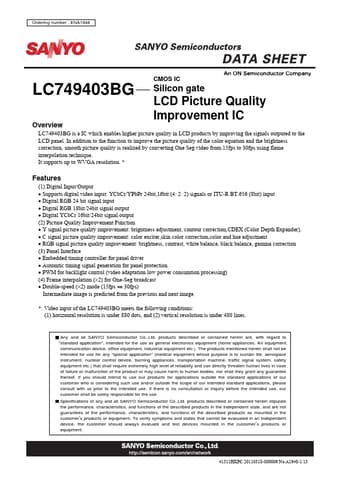

LC749403BG LCD Picture Quality Improvement IC by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LC749403BG

Datasheet Details

Part number	LC749403BG
Manufacturer	Sanyo Semicon Device
File Size	294.03 KB
Description	LCD Picture Quality Improvement IC
Datasheet	LC749403BG_SanyoSemiconDevice.pdf
Additional preview pages of the LC749403BG datasheet.

Product details

Features

es (1) Digital Input/Output.
Supports digital video input: YCbCr/YPbPr 24bit,16bit (4: 2: 2) signals or ITU-R BT.656 (8bit) input.
Digital RGB 24 bit signal input.
Digital RGB 18bit/24bit signal output.
Digital YCbCr 16bit/24bit signal output (2) Picture Quality Improvement Function.
Y signal picture quality improvement: brigntness adjustment, contour correction,CDEX (Color Depth Expander),.
C signal picture quality improvement: color exciter.
