LC74982W

The LC74982W is LCD TV Scan Converter IC designed by Sanyo Semicon Device.

Product Overview

Sanyo Semicon Device

Datasheet Details

Part number	LC74982W
Manufacturer	Sanyo Semicon Device
File Size	136.16 KB
Description	LCD TV Scan Converter IC

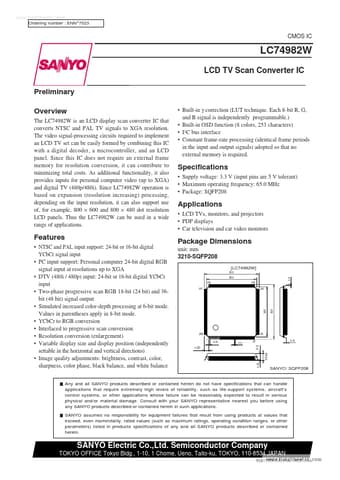

Datasheet	LC74982W_SanyoSemiconDevice.pdf
Additional preview pages of the LC74982W datasheet.

Product details

Description

Notes NTSC, PAL, and DTV (480i and 480p) inputs YCbCr signals conform to the CCIR 601 standard. PC input (up to XGA) C/Cb/G /Cr/B NTSC/PAL horizontal sync signal NTSC/PAL vertical sync signal DTV horizontal sync signal DTV vertical sync signal PC horizontal sync signal PC vertical sync signal Horizontal enable Three independent systems for both horizontal and vertical sync signals Any input

Features

NTSC and PAL input support: 24-bit or 16-bit digital YCbCr signal input.
PC input support: Personal computer 24-bit digital RGB signal input at resolutions up to XGA.
DTV (480i / 480p) input: 24-bit or 16-bit digital YCbCr input.
Two-phase progressive scan RGB 18-bit (24 bit) and 36bit (48 bit) signal output.
Simulated increased color-depth processing at 6-bit mode. Values in parentheses apply in 8-bit mode.
YCbCr to RGB conversion.
