LC749880T Image controller LSI

Analog I/F Remarks Composite video signal input 1 Composite video signal input 2 Component video signal input Cr Component video signal input Cb Component video signal input Y S-Video signal input Y S-Video signal input C Vertical synchronizing signal input pin (From Sync. Sep) Horizontal synchroniz.

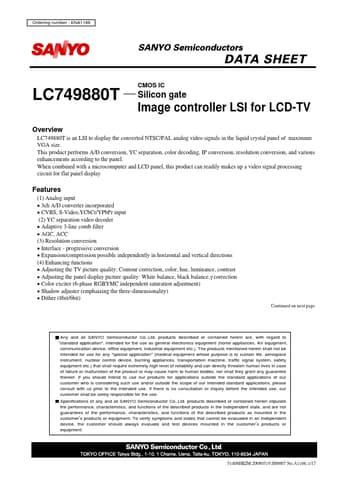

www.DataSheet.co.kr Ordering number : ENA1186 LC749880T Overview CMOS IC Silicon gate Image controller LSI for LCD-TV LC749880T is an LSI to display the converted NTSC/PAL analog video signals in the liquid crystal panel of maximum VGA size. This product performs A/D conversion, YC separation, color decoding, IP conversion, resolution conversion, and various enhancements according to the panel. When combined with a microcomputer and LCD panel, this product can readily makes up a video sign.

LC749880T Features

* (1) Analog input

* 3ch A/D converter incorporated

* CVBS, S-Video,YCbCr/YPbPr input (2) YC separation video decoder

* Adaptive 3-line comb filter

* AGC, ACC (3) Resolution conversion

* Interlace - progressive conversion

* Expansion/compression possible

LC749880T_SanyoSemiconDevice.pdf

LC749880T Datasheet Preview — Preview of LC749880T PDF

Datasheet Details

Part number:

LC749880T

Manufacturer:

Sanyo Semicon Device

File Size:

186.85 KB

Description:

Image controller lsi.
