LC74986NWF - LCD TV Scan Converter IC

Sanyo Semicon Device

The LC74986NWF by Sanyo Semicon Device is a LCD TV Scan Converter IC. Below is the official datasheet preview.

📥 Download Datasheet

LC74986NWF LCD TV Scan Converter IC by Sanyo Semicon Device - Datasheet Preview — Official preview page of the **LC74986NWF** LCD TV Scan Converter IC datasheet (Sanyo Semicon Device).

Datasheet Details

Part number	LC74986NWF
Manufacturer	Sanyo Semicon Device
File Size	113.79 KB
Description	LCD TV Scan Converter IC
Datasheet	LC74986NWF-SanyoSemiconDevice.pdf

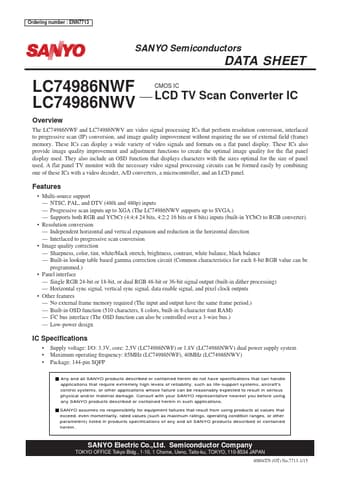

Additional preview pages of the LC74986NWF datasheet.

LC74986NWF Product details

Description

Notes 1 1 Data enable signals 1 22.0 DEHI DEVI VPBDEN (VPBEN) Port A system vertical data enable Port B system composite data enable (External video enable) 1 0.5 20.0 Continued on next page.No.7713-3/15 LC74986NWF, 74986NWV Continued from preceding page.Signal type Number of pins 1 Pixel clock 1 1 Clock enable Fixed oscillator System reset 1 1 1 8 8 External video 8 1 Symbol CLKI DCLKI VPBCK CLKIEN XTAL RST VPB1 VPB2 VPB3 VPBEN (VPBDEN) External video signal enable (port B syste

Features

Multi-source support.
NTSC, PAL, and DTV (480i and 480p) inputs.
Progressive scan inputs up to XGA (The LC74986NWV supports up to SVGA. ).
Supports both RGB and YCbCr (4:4:4 24 bits, 4:2:2 16 bits or 8 bits) inputs (built-in YCbCr to RGB converter).
Resolution conversion.
Independent horizontal and vertical expansion and reduction in the horizontal direction.
Interlaced to progressive scan conversion.
Image quality correcti.
