LC749870W

NTSC/PAL/SECAM Digital Video Decoder

LC749870W Features

* Supports NTSC (M, 4.43), PAL (B, D, G, H, I, M, N, 60), and SECAM video signal inputs.

* On-chip video switch that supports 4 video inputs

* 10-bit ADC (sampling at 27MHz)

* Automatic gain control (AGC) function

* Digital clamp circuit

* Digital auto

LC749870W General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 Symbol I/O CKO DVSS GPIO0 DATA6 DATA4 DATA7 DVSS DATA5 DATA3 DATA2 DATA1 I CSEL DATA0 DVSS DVDD11 DVDD33 INTREQ DVSS MD0 DVSS MD2 SCL MD1 SDA RESET PD.

LC749870W Datasheet (652.11 KB)

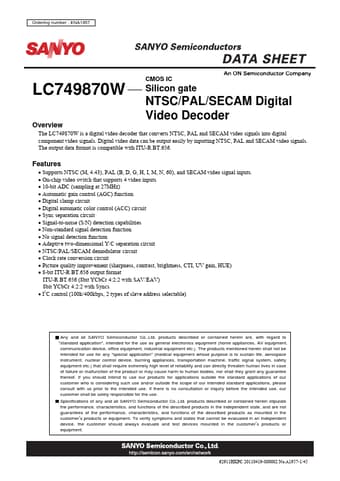

Preview of LC749870W PDF

Datasheet Details

Part number:

LC749870W

Manufacturer:

Sanyo Semicon Device

File Size:

652.11 KB

Description:

Ntsc/pal/secam digital video decoder.
www.DataSheet.co.kr Ordering number : ENA1957 CMOS IC LC749870W Overview Silicon gate NTSC/PAL/SECAM Digital Video Decoder The LC749870W is a di.
