LC74986NWV LCD TV Scan Converter IC

Notes 1 1 Data enable signals 1 22.0 DEHI DEVI VPBDEN (VPBEN) Port A system vertical data enable Port B system composite data enable (External video enable) 1 0.5 20.0 Continued on next page. No.7713-3/15 LC74986NWF, 74986NWV Continued from preceding page. Signal type Number of pins 1 .

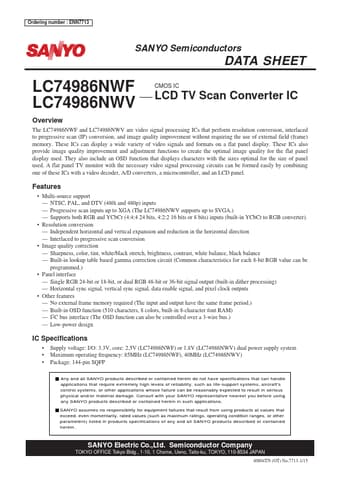

Ordering number : ENN7713 SANYO Semiconductors DATA SHEET LC74986NWF LC74986NWV Overview CMOS IC LCD TV Scan Converter IC The LC74986NWF and LC74986NWV are video signal processing ICs that perform resolution conversion, interlaced to progressive scan (IP) conversion, and image quality improvement without requiring the use of external field (frame) memory. These ICs can display a wide variety of video signals and formats on a flat panel display. These ICs also provide image quality improvem.

LC74986NWV Features

* Multi-source support

* NTSC, PAL, and DTV (480i and 480p) inputs

* Progressive scan inputs up to XGA (The LC74986NWV supports up to SVGA.)

* Supports both RGB and YCbCr (4:4:4 24 bits, 4:2:2 16 bits or 8 bits) inputs (built-in YCbCr to RGB converter).

* Reso

LC74986NWF-SanyoSemiconDevice.pdf

LC74986NWV Datasheet Preview — This datasheet PDF includes multiple part numbers: LC74986NWV, LC74986NWF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LC74986NWV, LC74986NWF

Manufacturer:

Sanyo Semicon Device

File Size:

113.79 KB

Description:

Lcd tv scan converter ic.

Note:

This datasheet PDF includes multiple part numbers: LC74986NWV, LC74986NWF.
Please refer to the document for exact specifications by model.
