LC74789

The LC74789 is On-Screen Display Controller designed by Sanyo Semicon Device.

Product Overview

Sanyo Semicon Device

📥 Download Datasheet

LC74789 On-Screen Display Controller by Sanyo Semicon Device - Datasheet Preview — Datasheet preview – LC74789

Datasheet Details

Part number	LC74789
Manufacturer	Sanyo Semicon Device
File Size	211.73 KB
Description	On-Screen Display Controller
Datasheet	LC74789_SanyoSemiconDevice.pdf

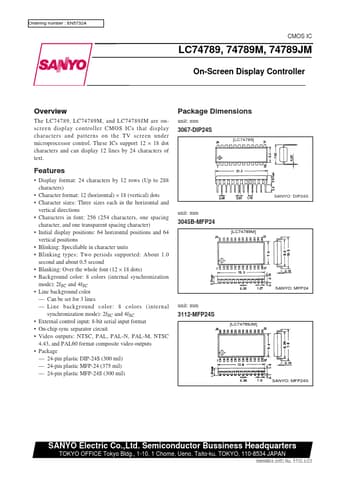

Additional preview pages of the LC74789 datasheet.

Product details

Features

Display format: 24 characters by 12 rows (Up to 288 characters).
Character format: 12 (horizontal) × 18 (vertical) dots.
Character sizes: Three sizes each in the horizontal and vertical directions.
Characters in font: 256 (254 characters, one spacing character, and one transparent spacing character).
Initial display positions: 64 horizontal positions and 64 vertical positions.
Blinking: Specifiable in character units.
Blinking types.
