LC75366 - Two-Channel Electronic Volume Control

Datasheet Summary

Features

  • Silicon gate CMOS process for low switching noise Functions.
  • Volume: 0 dB to.
  • 68 dB (in 2 dB steps) and.
  • ∞ ; 36 positions. A balance function can be implemented by controlling the left and right channel volume settings independently.
  • Loudness: Taps are provided at the.
  • 20 dB positions in the 10 dB step resistor ladder used by the volume control function. A loudness function can be implemented by attaching external RC circuits at these tap po.

📥 Download Datasheet

Datasheet preview – LC75366

Datasheet Details

Part number LC75366
Manufacturer Sanyo Semicon Device
File Size 244.77 KB
Description Two-Channel Electronic Volume Control
Datasheet download datasheet LC75366 Datasheet
Additional preview pages of the LC75366 datasheet.

📁 Similar Datasheet

  • LC7530 - CMOS LSI (Sanyo Semiconductor)
  • LC75344MD - Two-Channel Electronic Volume Controller (ON Semiconductor)
  • LC75345M - Electronic Volume Control System on-Chip (Sanyo Electric)
  • LC75347E - 6-Channel Single-Chip Electronic Volume Control System (Sanyo Electric)
  • LC75348 - Single-Chip Electronic Volume and Tone Control System (Sanyo Electric)
  • LC7534M - (LC7533) 3V Operated Electronic Volume Control (Sanyo Electric)
  • LC75384NE-R - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75384NW - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC7500 - Electronic Volume Controller (Sanyo Electric)
Other Datasheets by Sanyo Semicon Device
  • LC75366M - Two-Channel Electronic Volume Control
  • LC7536LHS - High-voltage/ Two-channel Electronic Attenuator
  • LC7536M - electronic volume control
  • LC7536R - Electronic Volume Control
  • LC7533 - 3V Electronic Volume Control
  • LC75341 - Single-Chip Volume and Tone Control
  • LC75341M - Single-Chip Volume and Tone Control
  • LC75342 - Single-Chip Volume and Tone Control

Full PDF Text Transcription

Click to expand full text

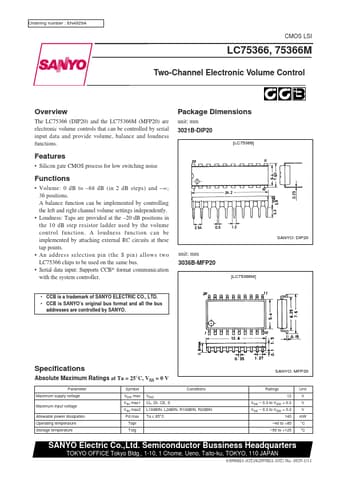

Ordering number : EN4929A CMOS LSI LC75366, 75366M Two-Channel Electronic Volume Control Overview The LC75366 (DIP20) and the LC75366M (MFP20) are electronic volume controls that can be controlled by serial input data and provide volume, balance and loudness functions. Package Dimensions unit: mm 3021B-DIP20 [LC75366] Features • Silicon gate CMOS process for low switching noise Functions • Volume: 0 dB to –68 dB (in 2 dB steps) and – ∞ ; 36 positions. A balance function can be implemented by controlling the left and right channel volume settings independently. • Loudness: Taps are provided at the –20 dB positions in the 10 dB step resistor ladder used by the volume control function. A loudness function can be implemented by attaching external RC circuits at these tap points.
