LC7536LHS - High-voltage/ Two-channel Electronic Attenuator

Datasheet Summary

Description

Description Left-channel 5 dB attenutaiton step input.

Features

  • a center tap at 20 dB attenuation for a loudness control using a minimum of external components. A device select pin allows two devices to be connected to the serial bus. Package Dimensions unit:mm 3061-DIP30S [LC7536LHS] 30 16 1 15 27.2 10.16 8.6 0.25 0.51min 4.25 3.2 4.95max The LC7536LHS operates from 5 V and 10 V supplies and is available in 30-pin DIPs. Features.
  • Three-line serial control.
  • Two device select.
  • Tap at 20 dB attenuation for a loudness control.

📥 Download Datasheet

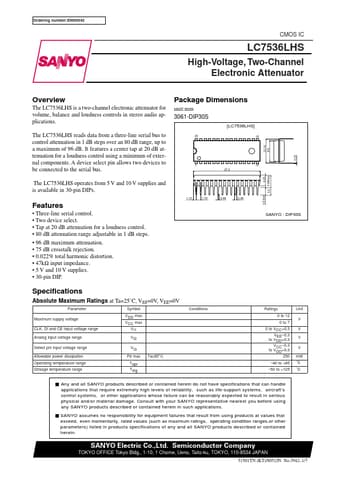

Datasheet preview – LC7536LHS

Datasheet Details

Part number LC7536LHS
Manufacturer Sanyo Semicon Device
File Size 79.45 KB
Description High-voltage/ Two-channel Electronic Attenuator
Datasheet download datasheet LC7536LHS Datasheet
