LC78211 - Analog Function Switch

Product Overview

Sanyo Semicon Device

Part number	LC78211
Manufacturer	Sanyo Semicon Device
File Size	115.06 KB
Description	Analog Function Switch
Datasheet	LC78211 Datasheet

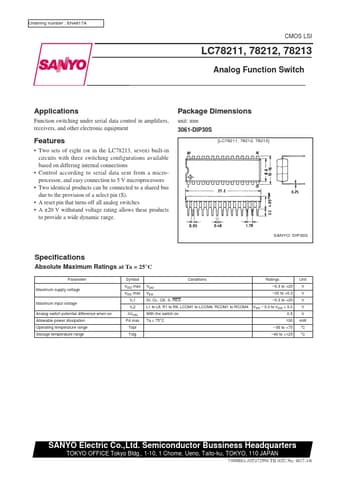

Additional preview pages of the LC78211 datasheet.

Two sets of eight (or in the LC78213, seven) built-in circuits with three switching configurations available based on differing internal connections.
Control according to serial data sent from a microprocessor, and easy connection to 5 V microprocessors.
Two identical products can be connected to a shared bus due to the provision of a select pin (S).
A reset pin that turns off all analog switches.
A ±20 V withstand voltage rating allows these produc.
