LC78604E Datasheet - Sanyo Semicon Device

LC78604E Compact Disc Player DSP

Ordering number : ENN7734 SANYO Semiconductors DATA SHEET CMOS IC LC78604E Compact Disc Player DSP with Built-in Microcontroller Overview The LC78604E CMOS IC implements the signal processing, servo control, LED display, button state acquisition, and remote controller handling required by compact disc players without requiring a separate microcontroller. It provides the following basic functions: demodulation of the EFM signal from the optical pickup, deinterleaving, error detection and correcti.

LC78604E Features

* 64-pin QIP

* Supply voltage: 3.3V single source Specifications Absolute Maximum Ratings at Ta=25°C, VSS=0V Parameter Symbol Maximum supply voltage Input voltage Output voltage Allowable power dissipation VDD max VIN VOUT Pdmax Operating temperature Topr Storage temperature

LC78604E Datasheet (91.66 KB)

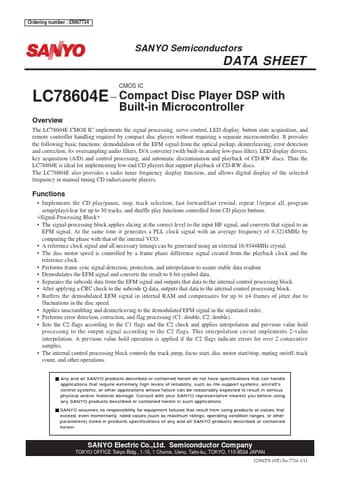

Preview of LC78604E PDF
LC78604E Datasheet Preview Page 2 LC78604E Datasheet Preview Page 3

Datasheet Details

Part number:

LC78604E

Manufacturer:

Sanyo Semicon Device

File Size:

91.66 KB

Description:

Compact disc player dsp.
