LC82103 Image-Processing LSI

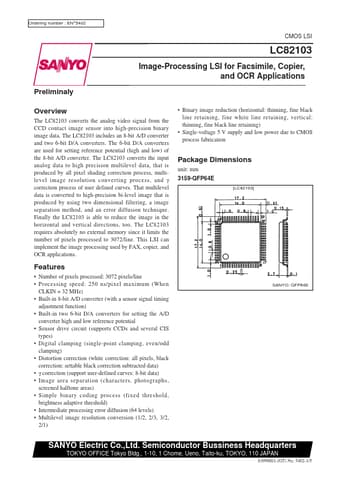

Ordering number : EN 5402 CMOS LSI LC82103 Image-Processing LSI for Facsimile, Copier, and OCR Applications Preliminaly Overview The LC82103 converts the analog video signal from the CCD contact image sensor into high-precision binary image data. The LC82103 includes an 8-bit A/D converter and two 6-bit D/A converters. The 6-bit D/A converters are used for setting reference potential (high and low) of the 8-bit A/D converter. The LC82103 converts the input analog data to high precision mul.

LC82103 Features

* Number of pixels processed: 3072 pixels/line

* Processing speed: 250 ns/pixel maximum (When CLKIN = 32 MHz)

* Built-in 8-bit A/D converter (with a sensor signal timing adjustment function)

* Built-in two 6-bit D/A converters for setting the A/D converter high and lo

LC82103 Datasheet (74.97 KB)

Preview of LC82103 PDF
LC82103 Datasheet Preview Page 2 LC82103 Datasheet Preview Page 3

Datasheet Details

Part number:

LC82103

Manufacturer:

Sanyo Semicon Device

File Size:

74.97 KB

Description:

Image-processing lsi.
